COOKING EQUIPMENTS
Raghu Marketing
Semi Automatic-Rotary Machine
Model: KMPSR-1.5
It is first "Semi Automatic Rotary Indexing Chapati Making Machine" with automatic turning of chapatie from one rotary plate to another. This automation gives perfect baking on both sides. The Ball(Peda) is kept manually on Rotary Indexing plate at one station. The plate move this ball under a pressing station. Here the ball is pressed to make round chapati. After getting baked on one side chapati is automatically turned and moved on to second rotary plate (tawa) to get it baked on second side. The plates also moves under a set of burners where chapati gets puffed. After baking on both sides and puffing the chapati drops in an out put tray for collection.

Raghu Marketing

TECHNICAL SPECIFICATION
Raghu Marketing

                                 Model's                                       KMPSR-1.5
Machine Area 4.5’ X 4.5’ X 3.5’(H)
Envelope Area 8.5' X 8.5' X 7.5'(H)
Power Required 1.75 K.W
LPG Consumption 3 KG/HR
Chapati Size 4” to 6” DIA
Chapati Thickness 1.5 to 3 MM
Chapati Weight 25 to 50 GM
Capacity 1500 CHAPATI / HR.
Machine Weight 500 KG(Approx)
LPG Pressure 1KG/CM2
Demo Video Video Link


COOKING EQUIPMENTS
Raghu Marketing

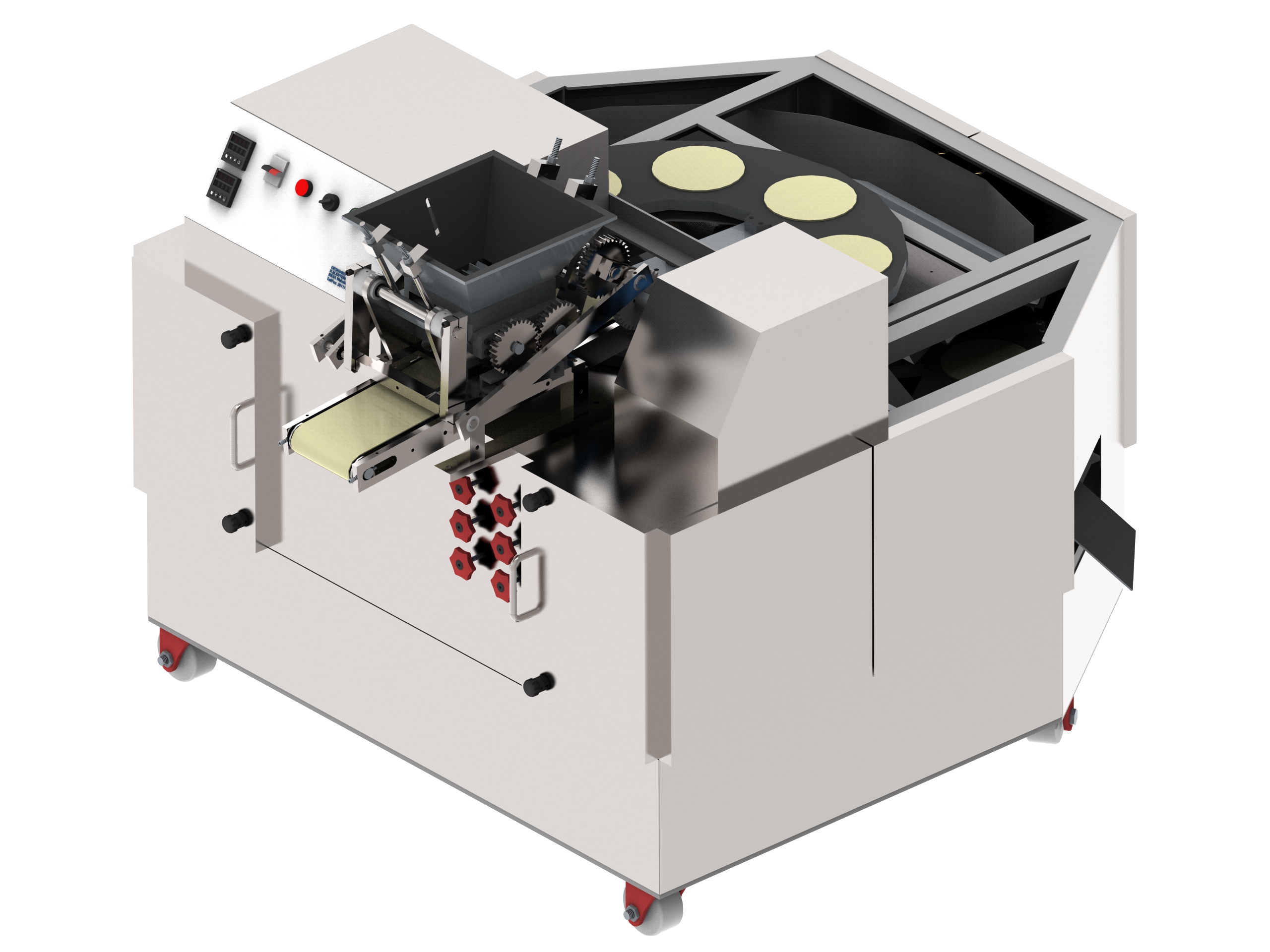

Automatic-Rotary Machine
Model: KMPR-1.5
It is first "Semi Automatic Rotary Indexing Chapati Making Machine" where in all the functions to make a perfect chapati i.e. Ball making, pressing, baking & puffing is done automatically. The Machine first makes the ball from the dough loaded into the hopper, the ball is pressed to make a round chapati. This round chapati moves on from one roatry plates to another automatically. These plates moves under a set of burners where chapati gets baked on both sides and puffed. The evenly cooked and puffed chapati drops in to the collection tray.

Raghu Marketing

TECHNICAL SPECIFICATION
Raghu Marketing

                                 Model's                                       KMPR-1.5
Machine Area 4.5’ X 4.5’ X 4.0’(H)
Envelope Area 8.5' X 8.5' X 8.0' (H)
Power Required 1.75 K.W
LPG Consumption 3 KG/HR
Chapati Size 4” to 6” DIA
Chapati Thickness 1.5 to 3 MM
Chapati Weight 25 to 50 GM
Production Capacity 1500 CHAPATI / HR.
Machine Weight 500 KG(Approx)
LPG Pressure 1 KG/CM2
