Fully Automatic Chapati Making Machine
Model: KMR (Rolling Type)
First fully automatic, compact, single unit machine to produce home-like chapaties in most hygienic way. Best suited for Industrial Canteens, Langars, Hospitals, Hostels, Railways & Defence Establishments. The machine produces balls from dough, rolls them into chapatis, cooks them by turning sides on tawas and puffs them the way it is done at home. The machine produces soft & tasty chapaties without oil.

Invention Patent No : 215836
Design Patent No : 19837

Raghu Marketing Raghu Marketing Raghu Marketing
Raghu Marketing

Raghu Marketing

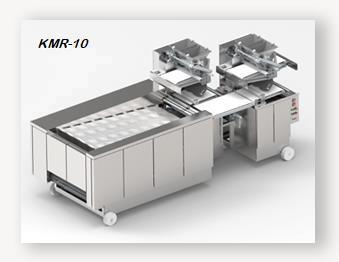

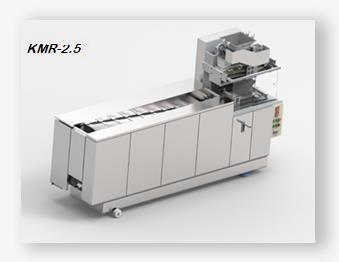

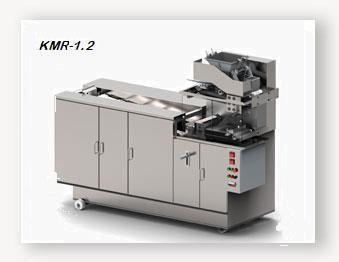

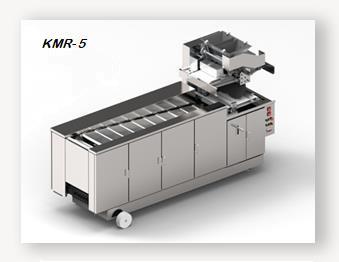

MODEL KMR-1.2 KMR-2.5 KMR-5 KMR-10
Machine Size 7’ X3 ’ X 6’ [H] 10’ X 3’ X 6’ [H] 10’ X 4’ X 6’ [H] 13' X 5.5' X 6' [H]
Envelope Area 11’ X7 ’ X 10’ [H] 14’ X 7’ X 10’ [H] 14’ X 8’ X 10’ [H] 17' X 9' X 10' [H]
Power Required 0.75 KW 1.2 KW 1.75KW 4KW
LPG Consuption 4 KG/HR 7 KG/HR 12 KG/HR 25 KG/HR
Chapati Size 4"to 6" DIA 4"to 6" DIA 4"to 6" DIA 4"to 6" DIA
Chapati Thikness 1.5-3MM 1.5-3MM 1.5-3MM 1.5-3MM
Chapati Weight 25GM-50GM 25GM-50GM 25GM-50GM 25GM-50GM
Production Capacity 1200 CHAPATI/HR 2500 CHAPATI/HR 5000 CHAPATI/HR 10000 CHAPATI/HR
Machine Weight 1000KG 1300KG 2000KG 3500KG
LPG/CNG Pressure Required 1KG/CM2 1KG/CM2 1KG/CM2 1KG/CM2
Demo Video Video Link Video Link - Video Link

Raghu Marketing

Raghu Marketing Simple, rugged and very compact deign requires no special skills to operate.
Raghu Marketing As the machines follow our traditional chapati making process(peda making-rolling-baking on both sides & puffing), the Chapaties produces are soft & tasty.
Raghu Marketing Uses L.P.G for heating & temperature is automatically maintained,giving consistent quality.
Raghu Marketing All parts coming in contact with dough and chapati are made of Food grade aluminium, Stainless Steel 304 and Teflon.
Raghu Marketing Parts which need cleaning can be opened and reassembled quickly.
Raghu Marketing You can just weight, size, thikness and browning on each side of Chapati.
Raghu Marketing Optional Chapati cooling conveyor and buttor applicator available.
Raghu Marketing It is a good-looking Chapati making machine and can be displayed in any Kitchen.
